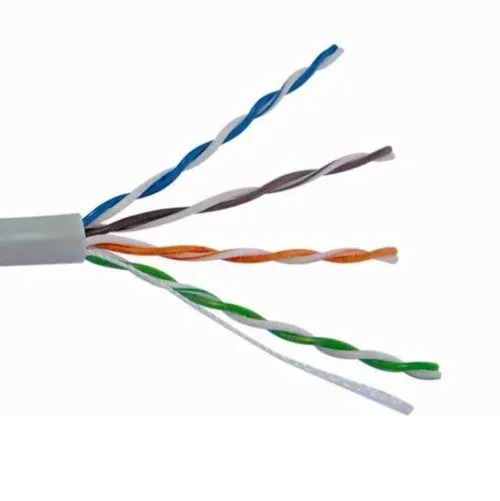

Unshielded Instrumentation Cable

Get a Price/Quote

Unshielded Instrumentation Cable Specification

Diameter
Approx. 5mm-12mm depending on core & size

Features
Unshielded, flexible, durable, weather resistant, suitable for signal transmission

Tensile Strength
Adequate for industrial wiring; specific values on request

Operating Temperature
-20C to +80C

Weight
Varies based on construction and length

Rated Temperature
-20C to +80C

Cable Type
Unshielded Instrumentation Cable

Install Type
Fixed installation, indoor/outdoor, trays, conduits

Insulation
PVC

Conductor Type
Stranded

Conductor Shape
Circular

Number of Conductor
2, 3, 4, 6, 8, 12, or customized

Impedance
Variable as per design (typically 50-100 Ohms)

Core Material
Copper

Usage & Applications
Ideal for transmission of analog/digital signals, industrial process automation, instrumentation

Core Number
2-12 or more (as specified)

Dielectiric Strength
2 kV/min

Product Type
Instrumentation Cable

Length
Can be customized or standard lengths (e.g. 100m, 200m)

Voltage
300V

Insulation Material
PVC (Polyvinyl Chloride)

Application
Instrumentation, process control, signal transmission

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40C to +70C

Shield Material
None (Unshielded)

Jacket Color
Black

Dimension (L*W*H)
Varies according to length and conductor size

Color
Black outer jacket, inner cores color-coded

Material
PVC/Copper

Size
0.5 sqmm - 2.5 sqmm (customization available)

Flame Retardant
Yes, conforms to IEC standards

UV Resistant
Yes

Minimum Bending Radius
10x overall diameter

Oil Resistance
Yes

Capacitance
50-250 pF/m, depending on design

Maximum Current Carrying Capacity
Up to 20A as per size

RoHS Compliant
Yes

Surface Finish
Matte PVC jacket

Packaging
Coil or drum packing

Unshielded Instrumentation Cable Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Unshielded Instrumentation Cable

Experience the supreme quality of our Fresh Unshielded Instrumentation Cable-crafted for noble performance in signal transmission. Conforming to IEC standards and fully RoHS compliant, this cable champions flexibility, durability, and resilience against UV rays and oils. Its matte black PVC jacket and preeminent copper stranded conductors ensure reliable conductivity up to 20A and 300V. Select the configuration that meets your needs, with customizable lengths and core counts. Get It Now to elevate your process control and automation with unrivaled industrial dependability.

Unshielded Instrumentation Cable: Advanced Use and Advantages

Engineered for fixed installations, our cable excels in analog or digital signal transmission across industrial environments. Its key advantage lies in unmatched flexibility and durability-remaining weather resistant and oil proof, applicable for both indoor and outdoor trays or conduits. The cable's extra features include customizable length, variable core numbers, and a robust matte PVC jacket. Preeminent performance ensures safe, reliable signal integrity in process automation and instrumentation tasks.

Sample Availability and Dispatch: Seamless International Shipping

Stock Ready for immediate sampling, we offer quick dispatch of Unshielded Instrumentation Cable samples. Our FOB Port in India enables smooth and timely transportation worldwide. Payment terms are flexible, designed for ease and efficiency. As an exporter and supplier, we guarantee swift processing, dependable packaging (coil or drum), and durable transit support-assuring your order arrives rapidly and securely at your destination, every time.

FAQ's of Unshielded Instrumentation Cable:

Q: How is the Unshielded Instrumentation Cable suitable for my industrial project?

A: This cable is engineered for secure signal transmission within industrial automation, process control, and instrumentation environments. Its flexible, durable nature and weather-resistant matte PVC jacket make it ideal for both indoor and outdoor fixed installations.

Q: What installation methods can be used with this cable?

A: The cable can be installed in trays, conduits, or fixed directly, making it versatile for a variety of settings, including control panels, machinery wiring, and process automation infrastructures.

Q: Where can I use this cable concerning environmental conditions?

A: Thanks to its UV, oil, and weather resistance, this cable is perfect for challenging environments both indoors and outdoors, including exposure to sunlight, oil spills, or variable temperatures ranging from -20C to +80C.

Q: When will my order be processed and shipped?

A: Orders and sample requests are typically processed immediately since we maintain stock ready for quick dispatch. Shipping takes place from our FOB port in India, ensuring efficient international transportation.

Q: What are the benefits of using an unshielded cable over a shielded one in instrumentation?

A: Unshielded cables offer greater flexibility, cost efficiency, and ease of installation, especially in environments with minimal electromagnetic interference. They are excellent for straightforward signal transmission where extra shielding is unnecessary.
