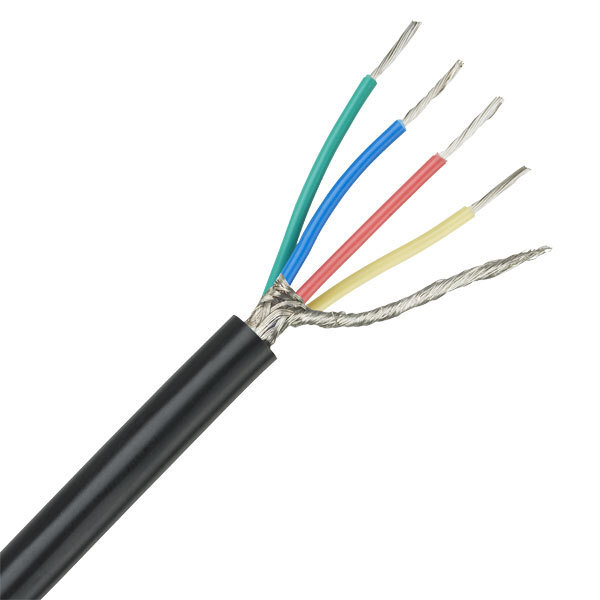

Solid Shielded Cables

Get a Price/Quote

Solid Shielded Cables Specification

Weight
Approx. 11 kg/box

Install Type
Indoor, Duct

Core Material
Copper

Impedance
100 Ohms

Insulation
PVC

Tensile Strength
150N

Diameter
6.2 mm (outer)

Armored Material
Not armored

Rated Temperature
-20C to +70C

Core Number
4

Usage & Applications
Ethernet, CCTV, structured wiring, data transmission

Cable Type
Shielded Twisted Pair (STP)

Conductor Shape
Round

Dielectiric Strength
2 kV/1 min

Features
Superior signal integrity, low crosstalk, robust shielded design

Number of Conductor
4 (Typical)

Operating Temperature
-20C to +70C

Conductor Type
Solid

Product Type
Solid Shielded Copper LAN Cable

Length
100 meters (custom lengths available)

Voltage
300V

Insulation Material
PVC

Application
Networking, security systems, industrial automation

Conductor Material
Solid bare copper

Jacket Material
PVC

Storage Temperature
-20C to +80C

Connector Color
Silver

Shield Material
Aluminum Mylar with tinned copper braid

Jacket Color
Gray

Dimension (L*W*H)
Custom/Varies as per requirement

Color
Gray

Material
Copper, PVC, Aluminum Mylar

Size
23AWG (typical)

Resistance
9.38 /100m at 20C

Maximum Pulling Force
110 N

Minimum Bending Radius
8x cable diameter

Fire Rating
CM/LSZH optional

Standards Compliance
TIA/EIA-568-C.2, ISO/IEC 11801

Test Voltage
1500V AC/min

Environmental Compliance
Lead-Free, REACH compliant

Packaging
Pull box, reel, or custom

Capacitance
5.6 nF/100m

Solid Shielded Cables Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Solid Shielded Cables

Experience the best-seller among shielded cables-our Solid Shielded Cables deliver competitive pricing for splendid efficiency in critical networking, security, and automation applications. Each cable is crafted using robust solid bare copper conductors for potent signal integrity, with a superior aluminum mylar shield and tinned copper braid, ensuring terrific protection against interference. The fresh design features optional fire ratings (CM/LSZH), environmental compliance (Lead-Free, REACH), and customizable packaging (pull box, reel, or custom lengths). Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801, these cables are engineered for demanding professional environments and valued by importers, exporters, and suppliers across India.

Versatile Application Sites and Optimal Use

Solid Shielded Cables excel in diverse environments such as indoor structured wiring, data transmission hubs, industrial automation facilities, networking centers, and CCTV installations. Typical sites of application include offices, control rooms, server farms, and commercial buildings. To ensure optimal results, install these cables within ducts or conduits, maintaining the minimum bending radius (8x cable diameter) during placement. Whether for new builds or upgrades, their robust shielded design guarantees steadfast performance for Ethernet, security, and data systems.

Supply Capability, Export Valuation & Delivery Promise

Benefit from our splendid supply capacity tailored to bulk proposal amounts for both domestic and export markets. With substantial manufacturing ability and competitive valuation, we efficiently fulfill small and large-scale orders. Sample availability is offered to meet your specification needs. Expect prompt delivery times with transparent logistics for every shipment. As a trusted exporter, importer, and supplier in India, our commitment is to furnish clients with swift, reliable, and outstanding cable solutions.

FAQ's of Solid Shielded Cables:

Q: How do I ensure proper installation of Solid Shielded Cables?

A: To achieve maximum performance, follow manufacturer guidelines such as maintaining a minimum bending radius of eight times the cable diameter and not exceeding the cable's maximum pulling force (110 N). Proper installation in indoor ducts or conduits also helps preserve signal integrity and cable lifespan.

Q: What sites benefit most from installing Solid Shielded Cables?

A: These cables are ideally suited for networking centers, monitoring stations, industrial automation areas, commercial properties, and structured wiring setups. Their robust shielding makes them perfect for environments prone to electrical noise or data interference.

Q: When are samples available for Solid Shielded Cables?

A: Samples can be requested at any stage of your procurement process. The sample availability allows you to evaluate our cable's quality and compatibility with your systems before placing larger orders.

Q: Where can I source these Solid Shielded Cables from?

A: We supply Solid Shielded Cables to various sectors through direct export and wholesale channels across India and international markets. Reach out to our sales team for customized proposals and order placements.

Q: What benefits do these shielded cables offer over unshielded alternatives?

A: Solid Shielded Cables provide superior protection against electromagnetic and radio-frequency interference, leading to cleaner data transmission, reduced crosstalk, and reliable network performance-especially in demanding or noise-prone environments.
